1.6mm 13X Zeolite Molecular Sieve
1.6mm 13X Zeolite Molecular Sieve
Product Description.
Chemxin Molecular Sieve 13X is the sodium form of the type X crystal and has a much larger pore opening than the type A crystals. It will adsorb molecules with a kinetic diameter of less than 10 Angstrom (1.0 nm) and exclude those larger. It also has the highest theoretical capacity of the common adsorbents and very good mass transfer rates. It can remove impurities too large to fit into a type A crystal and is commonly used to separate nitrogen from oxygen.
1. Specification.
|
Model |
13X |
|||
|
Color |
Light gray |
|||
|
Nominal pore diameter |
10 angstroms |
|||
|
Shape |
Sphere |
Pellet |
||
|
Diameter (mm) |
1.7-2.5 (8*12 mesh) |
3.0-5.0 (4*8 mesh) |
1.6 (1/16 inch) |
3.2 (1/8 inch) |
|
Size ratio up to grade (%) |
≥98 |
≥98 |
≥96 |
≥96 |
|
Bulk density (g/ml) |
≥0.68 |
≥0.68 |
≥0.65 |
≥0.65 |
|
Wear ratio (%) |
≤0.20 |
≤0.20 |
≤0.40 |
≤0.40 |
|
Crushing strength (N) |
≥30/piece |
≥85/piece |
≥25/piece |
≥65/piece |
|
Static H2O adsorption (%) |
≥25 |
≥25 |
≥25 |
≥25 |
|
Static CO2 adsorption (%) |
≥17 |
≥17 |
≥17 |
≥17 |
|
Water content (%) |
≤1.5 |
≤1.5 |
≤1.5 |
≤1.5 |
|
Typical Chemical Formula |
Na2O. Al2O3. (2.8±0.2) SiO2. (6~7)H2O |
|||

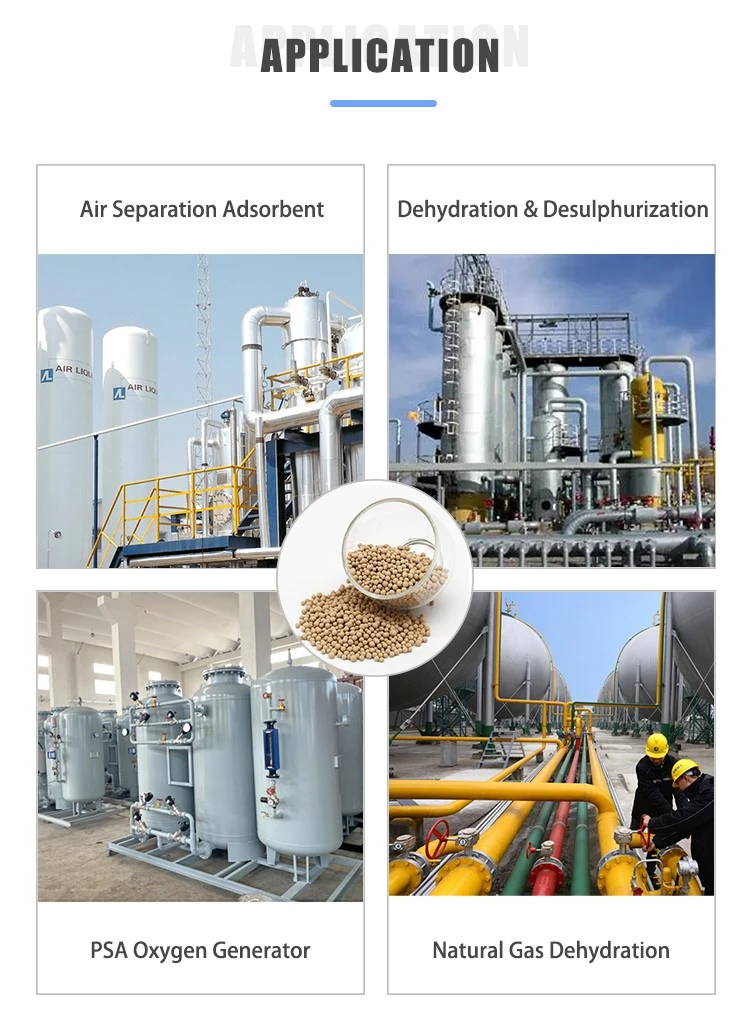

2. Typical Application:
a) Removal of CO2 and moisture from air (air pre-purification) and other gases.
b) Separation of enriched oxygen from air.
c) Removal of R-SH and H2S from hydrocarbon liquid streams (LPG, butane etc.)
d) Catalyst protection, removal of oxygenates from hydrocarbons (olefin streams).
e) Production of bulk oxygen in PSA units.
3. Packaging:
a) 25kg Paper Bag/Paper Drum;
b) 25kg Carton Box;
c) 660kg Super Sack;
d) 125kg Steel Drum.
Customized packaging/Logo is acceptable.
4. Quality Control:
a) Income material inspection.
b) Tracing the quality during production.
c) Finaly inspections before packing.
d) The clients could send to Third-party before delivery.
e) We will try our best to help clients when problem occurred.
