Ceramic Raschig Ring Packing with Excellent Acid Resistance in Cooling Towers Drying Columns
As one of the most professional manufacturers of famous brands' Ceramic Raschig Ring, we warmly welcome you to buy the ceramic raschig ring packing with excellent acid resistance in cooling towers drying columns in stock from us. Low price and excellent after-sale service will be offered.

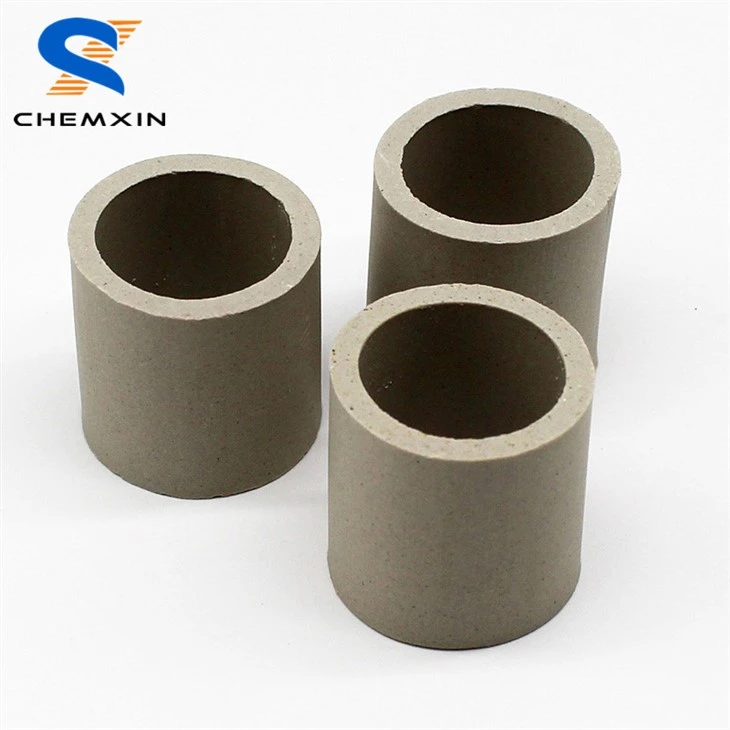

Ceramic raschig ring packing with excellent acid resistance in cooling towers drying columns
Product Description.
Ceramic Raschig Rings Packing is common regular packing that they are still used for refilling existing columns and other applications. Its surface ratio is higher than ceramic cylinders and balls by 30% and its ring shape has high mechanical stability. Ceramic Raschig ring is common regular packing that they are still used for refilling existing columns and other applications. Its surface ratio is higher than ceramic cylinders and balls by 30% and its ring shape has high mechanical stability.
1. Specification.
|
Model: |
Raschig Ring |
||||||
|
Shape: |
Ring |
||||||
|
Color: |
Light Grey |
||||||
|
Chemical composition |
|||||||
|
SiO2 |
Al2O3 |
Fe2O3 |
CaO |
K2O+Na2O |
|
||
|
>70% |
17-23% |
<1% |
<1-2% |
<2-4% |
|||
|
Technical data |
|||||||
|
Diameter (mm) |
D*H*T (mm) |
Surface area (m2/m3) |
Free volume (%) |
Number per m3 |
Bulk density (Kg/m3) |
Dry Packing Factor(m-1) |
|
|
15 |
15*15*2 |
330 |
70 |
250000 |
690 |
960 |
|
|
16 |
16*16*2 |
305 |
73 |
192500 |
730 |
784 |
|
|
25 |
25*25*2.5 |
190 |
78 |
49000 |
505 |
400 |
|
|
40 |
40*40*5 |
126 |
75 |
12700 |
577 |
305 |
|
|
50 |
50*50*5 |
93 |
81 |
6000 |
457 |
177 |
|
|
80 |
80*80*9.5 |
90 |
68 |
1910 |
714 |
234 |
|
|
100 |
100*100*10 |
70 |
70 |
1000 |
700 |
172 |
|
|
150 |
150*150*15 |
50 |
68 |
295 |
790 |
142 |
|
|
Physical properties |
|||||||
|
Index |
Value |
||||||
|
Specific gravity(g/cm3) |
2.25-2.35 |
||||||
|
Water absorption(%) |
<0.5 |
||||||
|
Acid-resisting strength, %Wt. Loss (ASTMc279) |
<4 |
||||||
|
Firing temperature(Degree C) |
1280-1320 |
||||||
|
Softening point( Degree C) |
>1400 |
||||||
|
Specific Density(kg/m3) |
2350 |
||||||
|
Package : |
Jumbo bag; Carton box; Wooden Case |
||||||
|
Warranty: |
a) By National Standard HG-T 4369-2012 |
||||||
|
b) Offer lifetime consultation on problems occurred |
|||||||
2. Typical Application:
-Used for chemical industry, metallurgy, gas and environmental protection industries in the drying tower, absorption tower, cooling tower, scrubber, regeneration tower.
3. Features:
High-temperature resistance ,Strong acid resistance .Simple structure,Easy processing ,Improving distribution of gas-liquid and mass transfer performance.
4. Available Size: 6mm,10mm,12mm,15mm,25mm,50mm, 80mm,100mm
Package & Shipment.

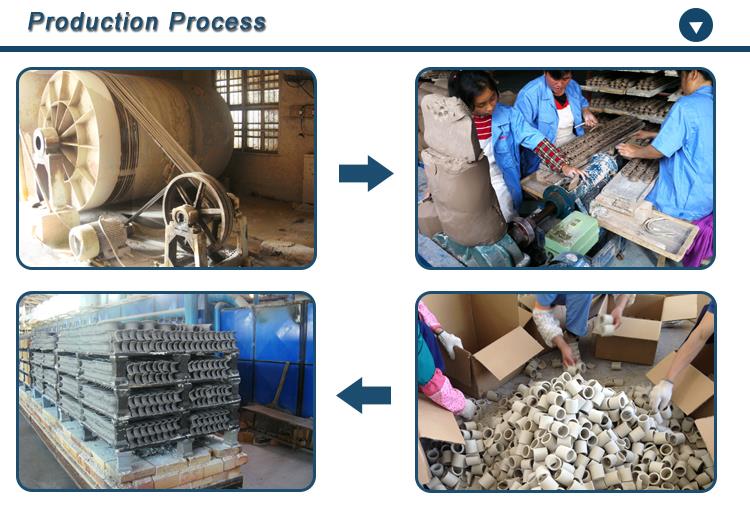

Production Process.
Product series
Company information.
Certificate.
FAQ.
1).Do you provide samples ? Is it free or extra ?
---Yes, we could offer the sample for free charge but freight cost should be your side.
2). Is CHEMXIN a manufacturer or trading company?
---Manufacturer.
3). What is your production capacity?
---More than 3000 cubic meters per month.
