Carbon Molecular Sieve CMS 280 For PSA Nitrogen Generator

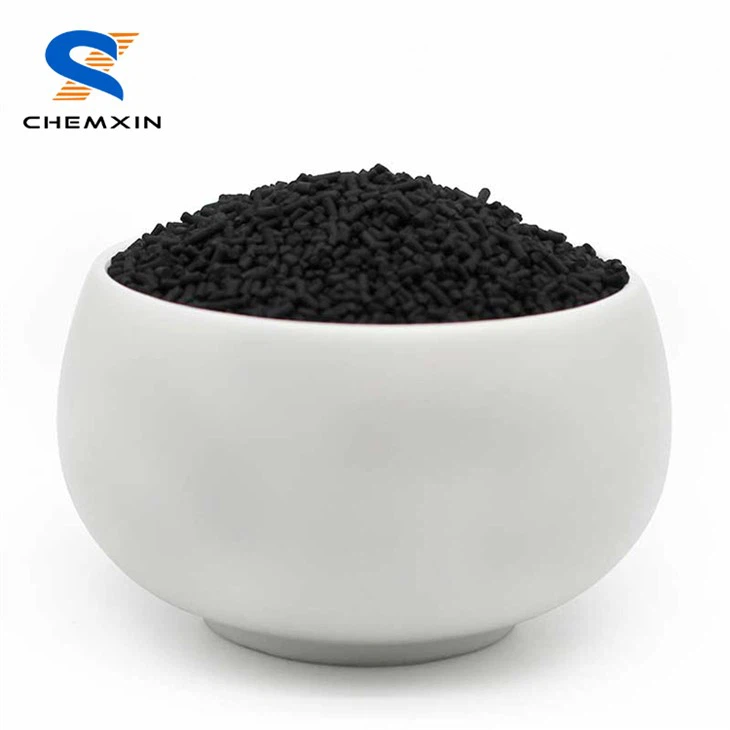

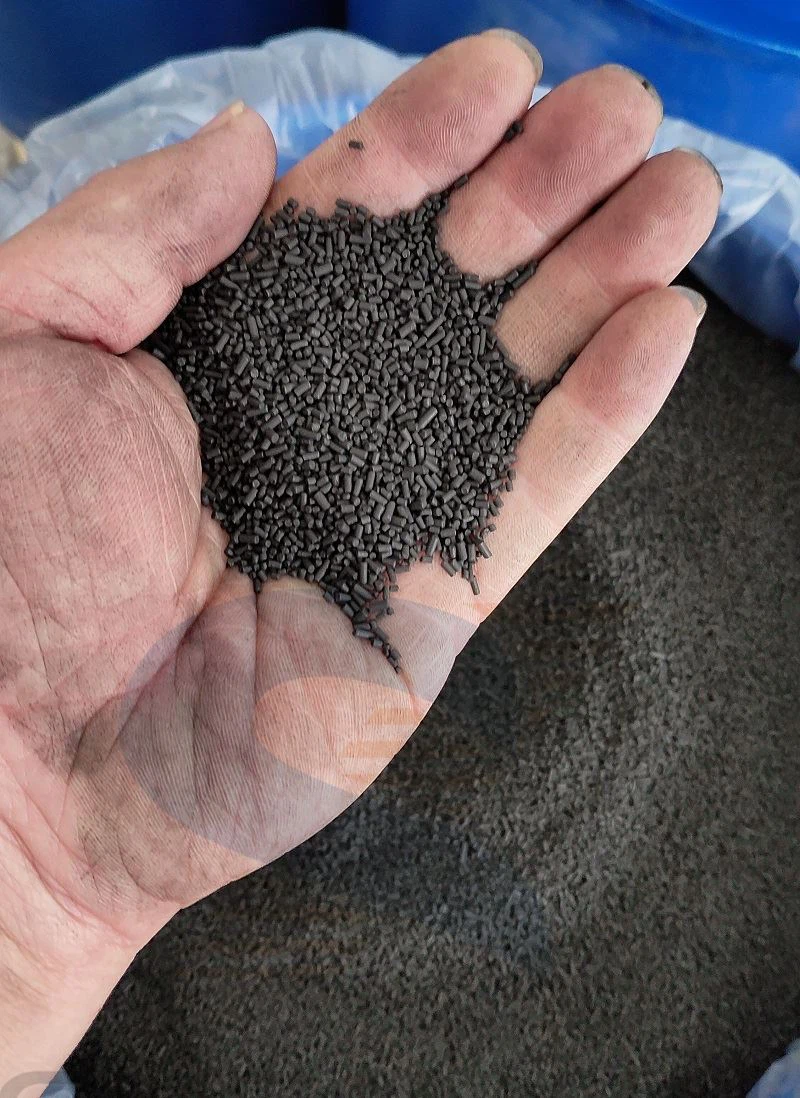

Chemxin Carbon Molecular Sieve takes the appearance of cylindrical black solid, contains countless 4 angstrom fine pores. It can be used to separate air into nitrogen and oxygen. In industry, CMS can concentrate nitrogen from air with PSA systems.
Technical Parameter:
| Model | Carbon Molecular Sieve | |||
| Appearance | Black, extruded(pellet) | |||
| Nominal pore diameter | 4 angstroms | |||
| Bulk Density |
630-680 KG/M3 |
|||
| Dust level | 100PPM Max | |||
|
Adsorbent time (S) (The test temperature≤20℃) |
2*50(can be adjusted) | |||
| Diameter (mm) | 1.0-1.2 | 1.3-1.5 | 1.5-1.8 | 1.8-2.0 |
| Crushing Strength (N/pc) | 50-60 | 60-70 | 70-80 | 110-130 |
| Production Output | Data as follows | 3-8% loss | 5-15% loss | 10-20% loss |
| Type |
Adsorption Pressure (MPa) |
N2 Purity(%) |
N2 quantity (M3/T.MT) |
Air/N2 (%) |
| CMS-280 |
0.75-0.8 |
99.999 | 90 | 6.4 |
| 99.99 | 135 | 4.5 | ||
| 99.9 | 190 | 3.4 | ||
| 99.5 | 280 | 2.3 | ||
| 99 | 335 | 2.2 | ||
| 98 | 365 | 2.1 | ||
| 97 | 410 | 2.0 | ||
| 96 | 455 | 1.8 | ||
| 95 | 500 | 1.6 | ||
| CMS-260 |
0.75-0.8 |
99.999 | 75 | 6.5 |
| 99.99 | 120 | 4.6 | ||
| 99.9 | 175 | 3.4 | ||
| 99.5 | 260 | 2.3 | ||
| 99 | 320 | 2.2 | ||
| 98 | 350 | 2.1 | ||
| 97 | 390 | 2.0 | ||
| 96 | 430 | 1.9 | ||
| 95 | 470 | 1.7 | ||
Pressure Swing Adsorption (99 – 99.999%): Pressure swing adsorption (PSA) is a technology used to separate some gas species from a mixture of gases under pressure according to the species' molecular characteristics and affinity for an adsorbent material. It operates at near-ambient temperatures and differs significantly from cryogenic distillation techniques of gas separation. Carbon molecular sieves are used as a trap, preferentially adsorbing the target gas species at high pressure.
