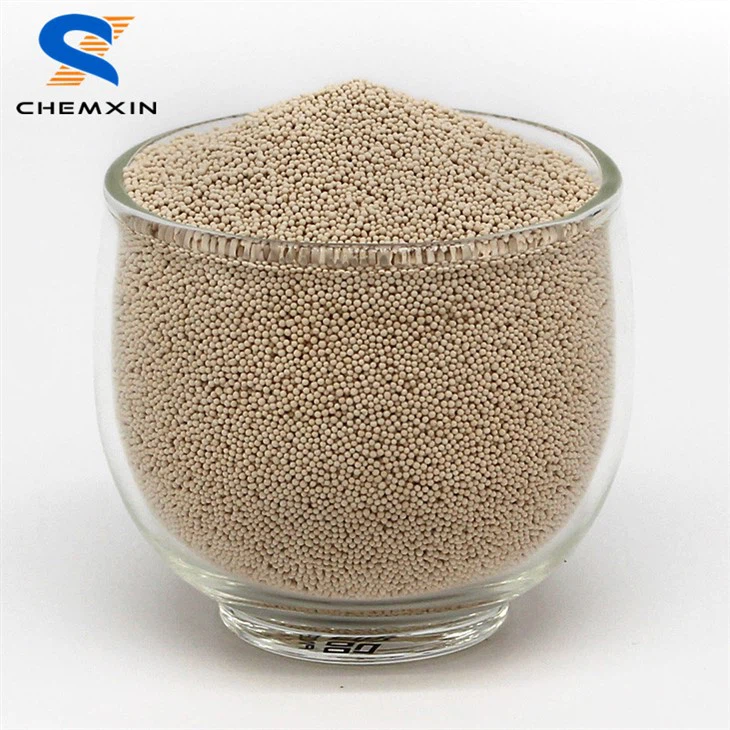

13X Hp Sodium Molecular Sieve For 5L 10L 100L Psa Oxygen Concentrator

light gray 0.4-0.8mm molecular sieve 13X HP used in medical . Molecular Sieve 13X- HP is mainly used in PSA oxygen concentrators and oxygen concentrators device,and as well as the industrial PSA unit, with the characteristics of higher N2 adsorption capacity and N2 with O2 selectivity, easy...

Send Inquiry

As one of the most professional manufacturers of famous brands' 13X HP Molecular Sieve, we warmly welcome you to buy the 13x hp sodium molecular sieve for 5l 10l 100l psa oxygen concentrator in stock from us. Low price and excellent after-sale service will be offered.

Zeolites are a type of molecular sieve with a porous structure that adsorbs gases and liquids. One of the most important uses of zeolites is in oxygen concentrators, which use them to get rid of nitrogen, which is one of the main element in air and make high-quality oxygen.

Since oxygen concentrators are devices that use pressure swing adsorption (PSA) technology to separate oxygen from nitrogen in the air, they work by pushing air through two layers of zeolite, with nitrogen adsorbed in the first layer and oxygen passing through the second. Once the nitrogen is adsorbed, the zeolite is released and filled back up with air. Then the two layers are swapped and the cycle begins again.

1.Specification.

Model	13X-HP
Color	Light gray
Nominal pore diameter	10 angstroms
Shape	Sphere (ball)
Loss on Ignition (wt%.575℃, 1hr)	≤1.0	≤1.0
Bulk density (g/ml)	≥0.62	≥0.62
Crushing strength (N)	/	≥30/piece
Static H2O capacity (wt% RH60%,25℃)	≥30	≥30
Static CO2 capacity(wt% 250mmHg, 25℃)	≥19.8	≥19.8
Attrition (wt%)	≤0.2	≤0.2
Particle Ration (%)	≥95	≥97
N2 capacity(ml/g,)	≥8	≥8
N2/O2 Selectivity(a,)	≥3	≥3
