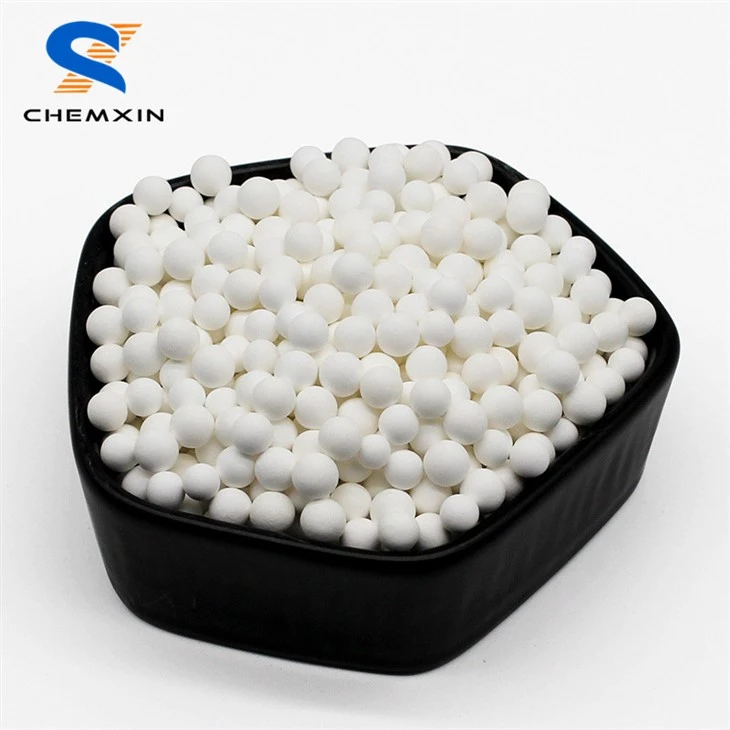

99% Alumina Ceramic Ball
99% Alumina Ceramic Ball
Product Description.
The Chemxin 99 High Alumina Support Media is in chemical composition 99+% alpha alumina and a maximum 0.2wt% SiO2. Because of its high alumina content and low silica (SiO2 ), it's a very excellent and ideal product for high temperature and steam applications, such as secondary reformers in ammonia processing, where leached silica will coat downstream equipment or foul the catalyst bed.
High-alumina ceramic balls are widely used as catalyst carriers in the petroleum, chemical, power and other industries due to their high hardness, high wear resistance and good thermal stability. During the reaction process of the catalyst, high-alumina ceramic balls can effectively disperse the catalyst and improve the activity of the catalyst, thereby improving the reaction efficiency. In addition, its excellent thermal stability enables high-alumina ceramic balls to maintain stable performance under high temperature conditions, further extending the service life of the catalyst.
1. Specification.
|
Model: |
Chemxin 99 |
||||
|
Color: |
White |
||||
|
Shape: |
Ball |
||||
|
Typical Technical Composition |
Min. % |
Max. % |
Usual % |
||
|
SiO2 |
****** |
0.2 |
0.18 |
||
|
Al2O3 |
90 |
99.6 |
99.3 |
||
|
Fe2O3 |
****** |
0.2 |
0.02 |
||
|
TiO2 |
****** |
0.55 |
0.02 |
||
|
CaO |
****** |
0.1 |
0.2 |
||
|
MgO |
****** |
0.1 |
0.05 |
||
|
Na2O |
****** |
0.25 |
0.1 |
||
|
K2O |
****** |
0.2 |
0.13 |
||
|
Max. Operating Temperature |
1550°C |
2822 |
|||
|
Specific Density |
3.4g /cm3 |
212 lb /ft3 |
|||
|
Bulk Density (Packing Density) |
2.1g /cm3 |
131 lb /ft3 |
|||
|
Size / |
Crush Strength |
||||
|
Nominal Size |
(lbs) |
(kg) |
(N/pc) |
||
|
mm |
inch |
min. |
min. |
min. |
|
|
3 |
1/8" |
115 |
52 |
510 |
|
|
6 |
1/4" |
230 |
105 |
1030 |
|
|
10 |
3/8" |
440 |
200 |
1961 |
|
|
19 |
3/4" |
3344 |
1520 |
14896 |
|
|
25 |
1" |
3432 |
1560 |
15288 |
|
|
38 |
1-1/2" |
4034 |
1830 |
17946 |
|
|
50 |
2" |
4960 |
2250 |
22065 |
|
2. Typical Application:
a) high temperature and steam for air craftindustry.
b) has very excellent thermal properties, with its high density high-temperature resistance 1550℃.
c) it's suitable for applications in ole fin processes, such as ethylene dryers.
FAQ.
1).Could I take some free samples?
---Yes, free sample is acceptance.
2). Is CHEMXIN a manufacturer or trading company?
---CHEMXIN is the manufacturer since the year of 2002.
3). How long does it take to delivery?
---Usually 7-10 days after deposit.
4). Is it quality assurance?
---Of course, we have certified to ISO 9001:2008, ISO 14001:2004, OHSAS 18001:2007.
