Molecular Sieve 13X APG

Molecular Sieve 13X APG

High adsorption 1.7-2.5mm 13X APG molecular sieve for air cryo separation system Product Description. Molecular Sieve Type 13X, the sodium form of the Type X crystal structure, is an alkali metal alumino-silicate. Type 13X will adsorb molecules with critical diameters up to 10 angstroms.

Chat Now

Product Details

Molecular Sieve 13X APG

Product Description.

Molecular Sieve Type 13X, the sodium form of the Type X crystal structure, is an alkali metal alumino-silicate. Type 13X will adsorb molecules with critical diameters up to 10 angstroms.

Chemxin13X APG molecular sieve is specially designed to co-absorb CO2 and H2O for air cryo-separation industry. It has larger capacity and faster adsorption speed for removal of CO2 and H2O to prevent the bed gelation.



Specification.

Model

13X APG

Color

Light gray

Nominal pore diameter

10 angstroms

Shape

Sphere

Pellet

Diameter (mm)

1.7-2.5 (8*12mesh)

3.0-5.0 (4*8mesh)

1.6(1/16inch)

3.2 (1/8inch)

Size ratio up to grade (%)

≥98

≥98

≥98

≥98

Bulk density (g/ml)

≥0.67

≥0.65

≥0.63

≥0.62

Wear ratio (%)

≤0.20

≤0.20

≤0.40

≤0.40

Crushing strength (N)

≥25/piece

≥75/piece

≥25/piece

≥60/piece

Static H2O adsorption (%)

≥27

≥27

≥27

≥27

Static CO2 adsorption (%)

≥18

≥18

≥18

≥18

Water content (%)

≤1.5

≤1.5

≤1.5

≤1.5



Typical Chemical Formula

Na2O . Al2O3 . 2.45SIO2 . 6.0H2O (SiO2 : Al2O3 ≈2.6-3.0)

Typical Application

Removal of H2O from air fro air cryo-separation application

Warranty:

a)By National Standard HG-T_2690-2012
b)Offer lifetime consultation on problems occurred


2.Typical Application:

- Used commercially for general gas drying, air plant feed purification (simultaneous removal of H2O and CO2).





3. Regeneration:

Chemxin molecular sieve Type 13X APG can be regenerated by either heating in the case of thermal swing processes; or by

lowering the pressure in the case of pressure swing processes.

To remove moisture from a 13X APG molecular sieve, a temperature of 250-300°C is required. A properly regenerated molecular sieve can give moisture dew points below -100°C, or mercaptans or CO2 levels below 2ppm. The outlet concentrations on a pressure swing process will depend on the gas present, and on the conditions of the process



4. Size:
13X APG- Zeolite are available in beads of 1-2 mm(10x18 mesh), 2-3 mm(8x12 mesh), 2.5-5 mm(4x8 mesh) and as powder, and in pellet 1.6mm, 3.2mm.



5. Attention:
To avoid damp and pre-adsorption of organic before running, or must to be reactivated.



Package & Shipment.

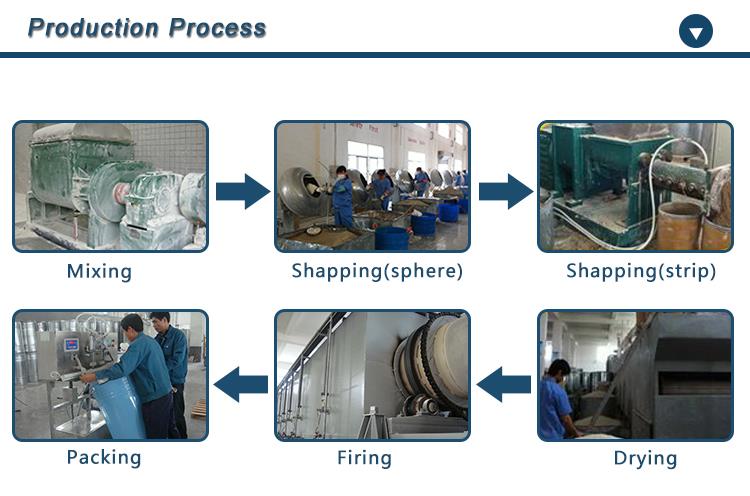

Production Process.



Company information.




Certificate.




FAQ.

1).Whether the molecular sieve can be regenerated or not?

---Yes you can regenerate. There are some methods of Regeneration of Molecular Sieve include pressure change, heating and purging with a carrier gas or vacuum Pressure Swing Adsorption. Regeneration temperatures depend on Molecular Sieve type.

2). Small quantity are acceptance?

---Yes, we would like to provide you samples or in small quantity.

3). After sales service available?

---Yes. We have professional team work to support customer to solve any kind of problems.

4). How to do the payment?

---TT, Paypal, Western Union, L/C etc

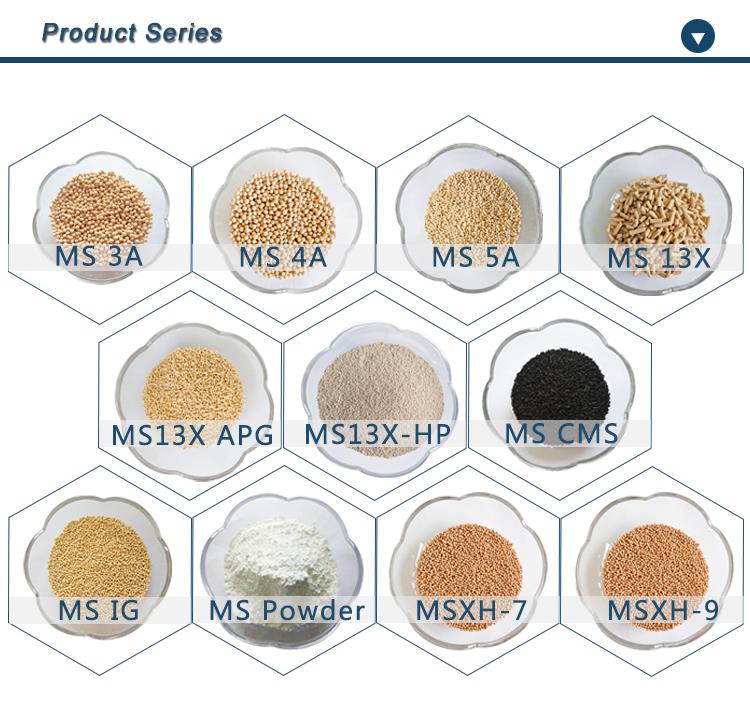

Product Series.
